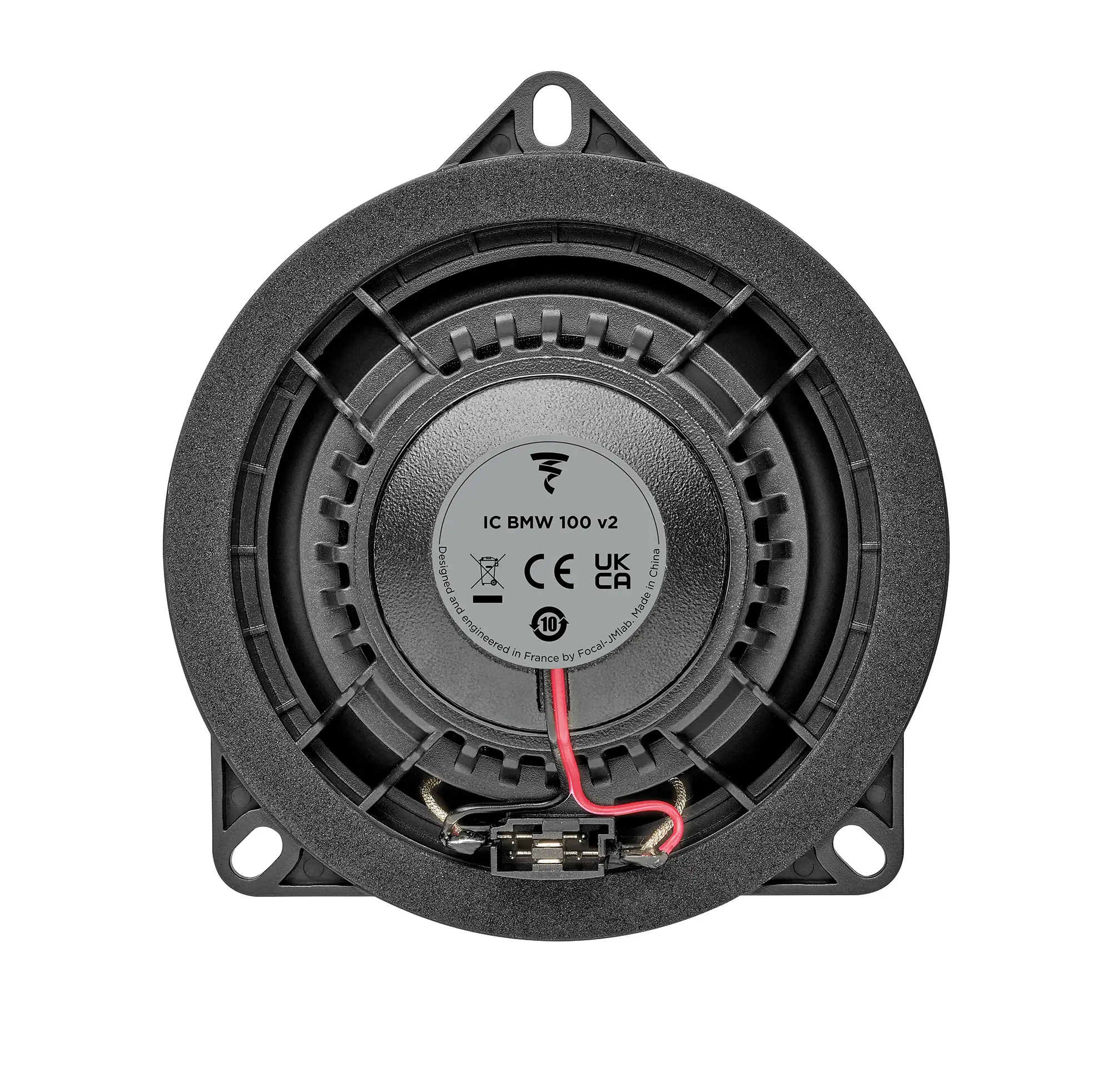

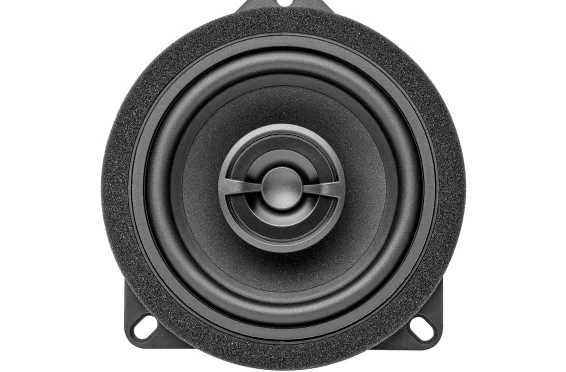

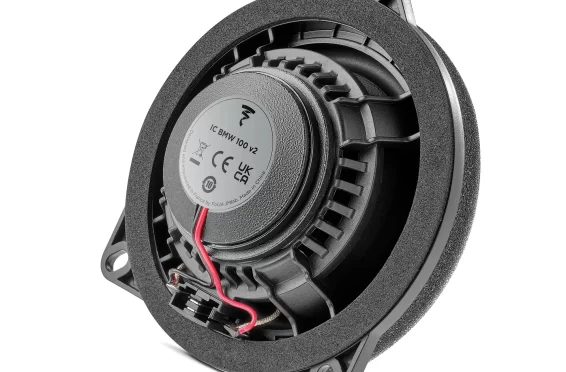

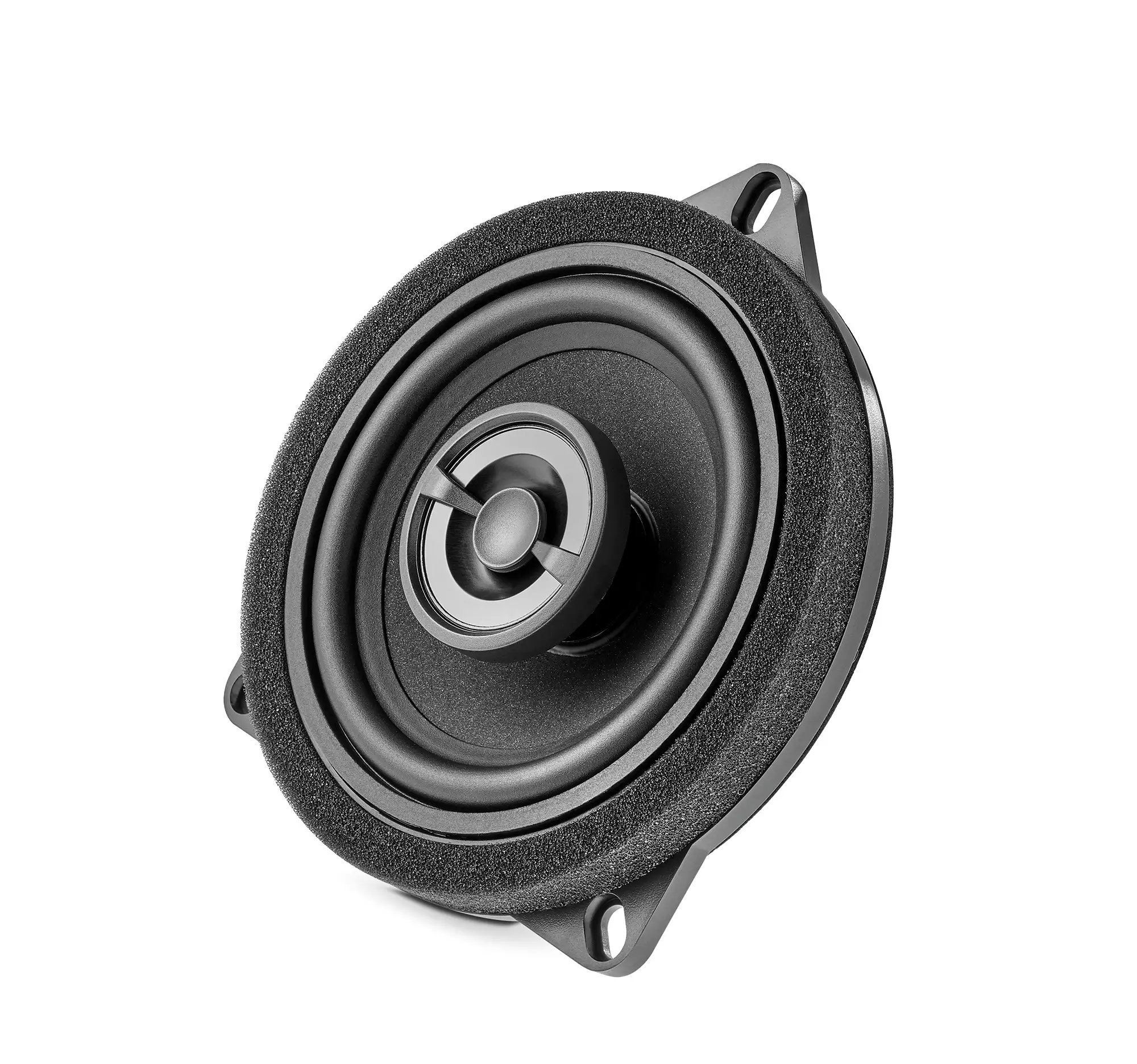

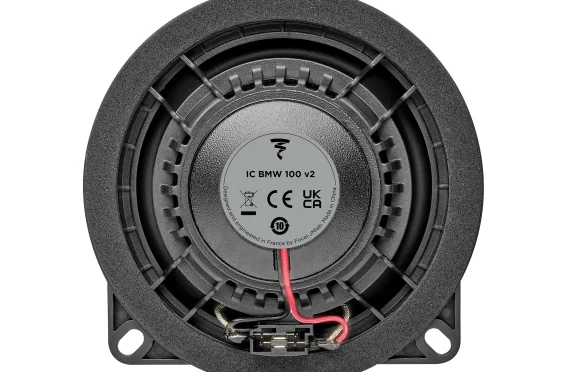

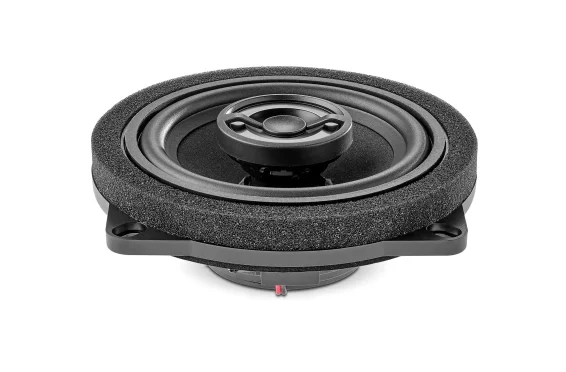

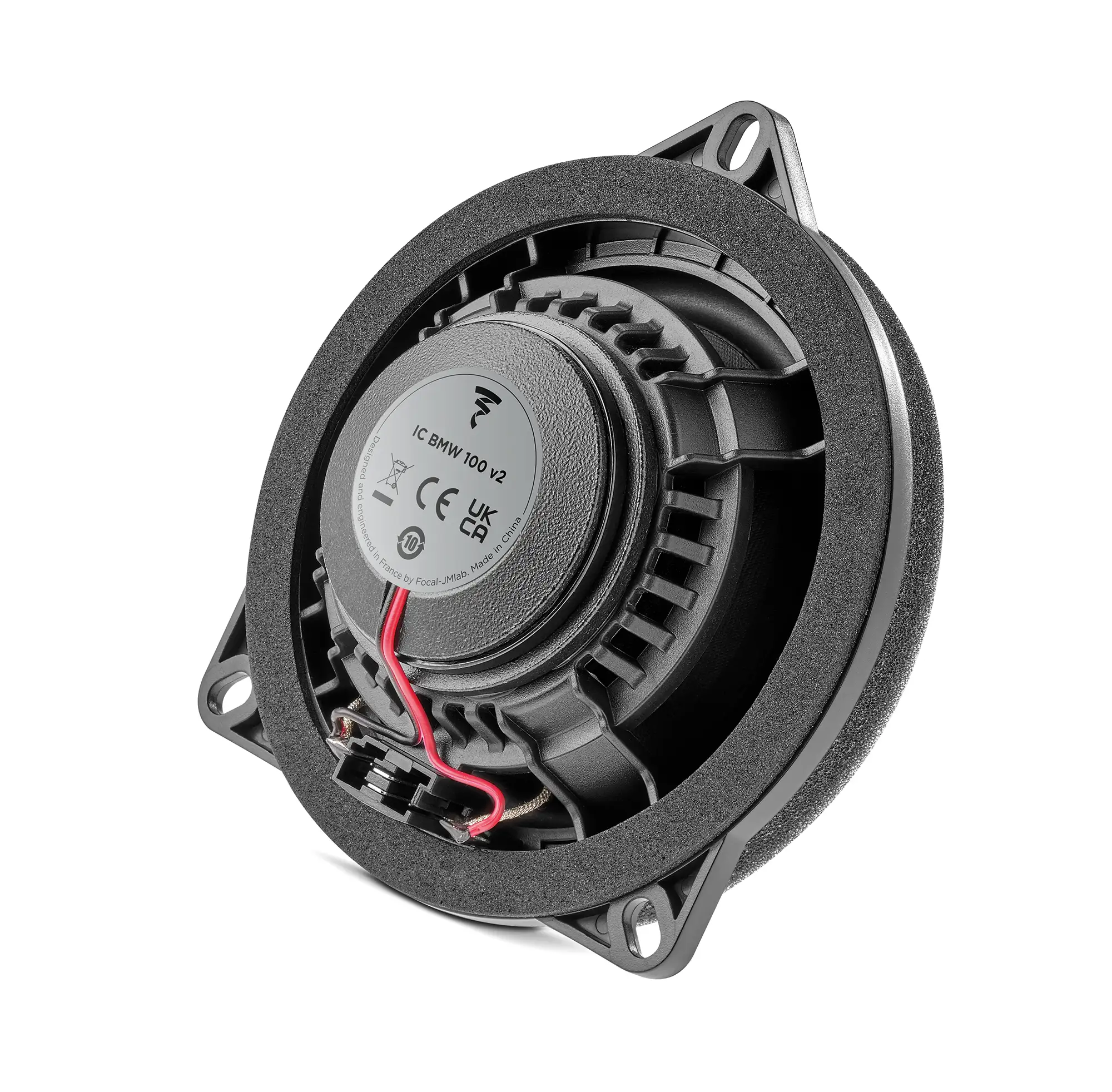

IC BMW 100 V2
Details:
- Product Line:
- BMW, Dedicated, Integration, Plug & Play
- Download:
- Infosheet (PDF)
- Download:
- Specsheet (PDF)

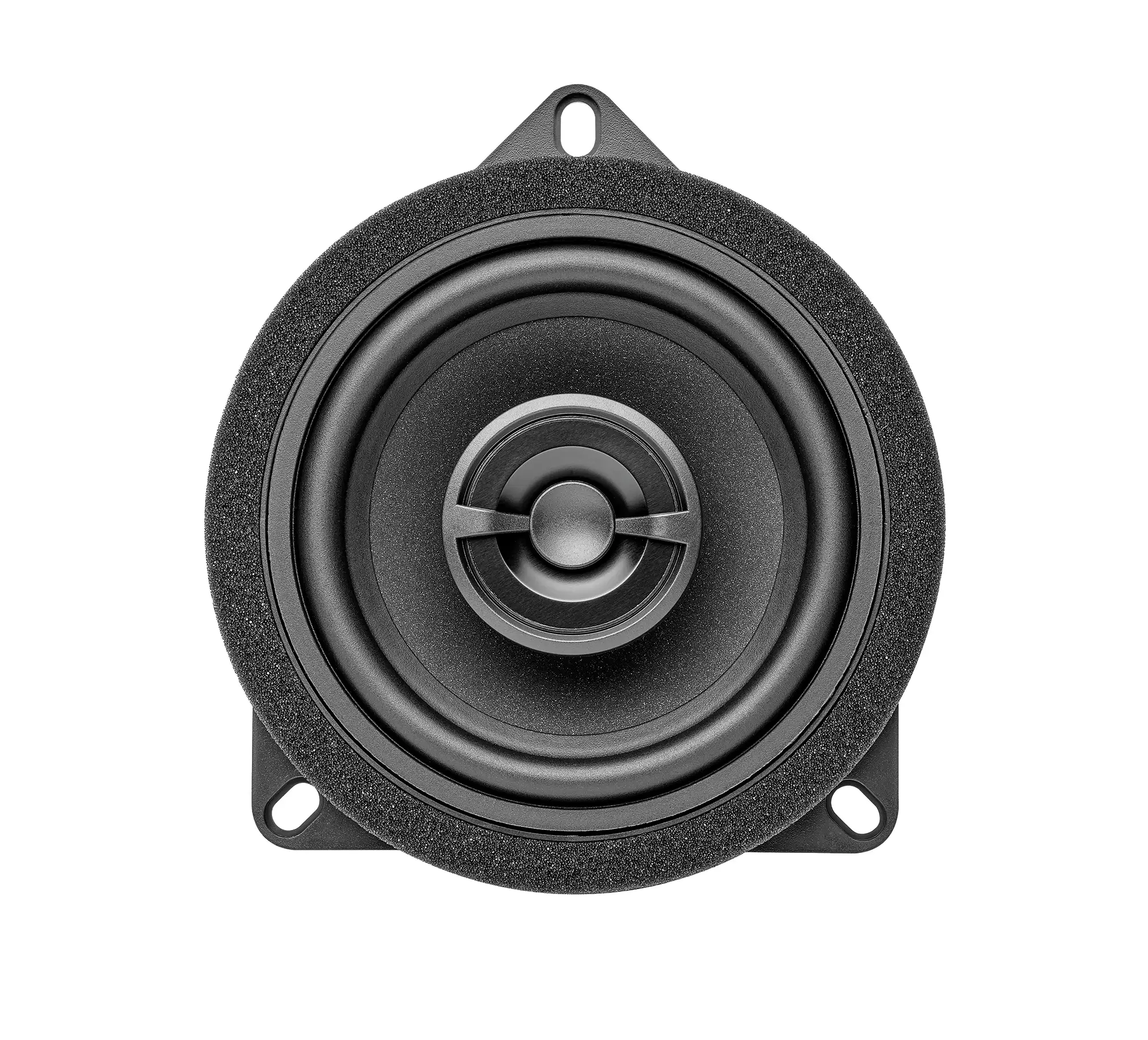

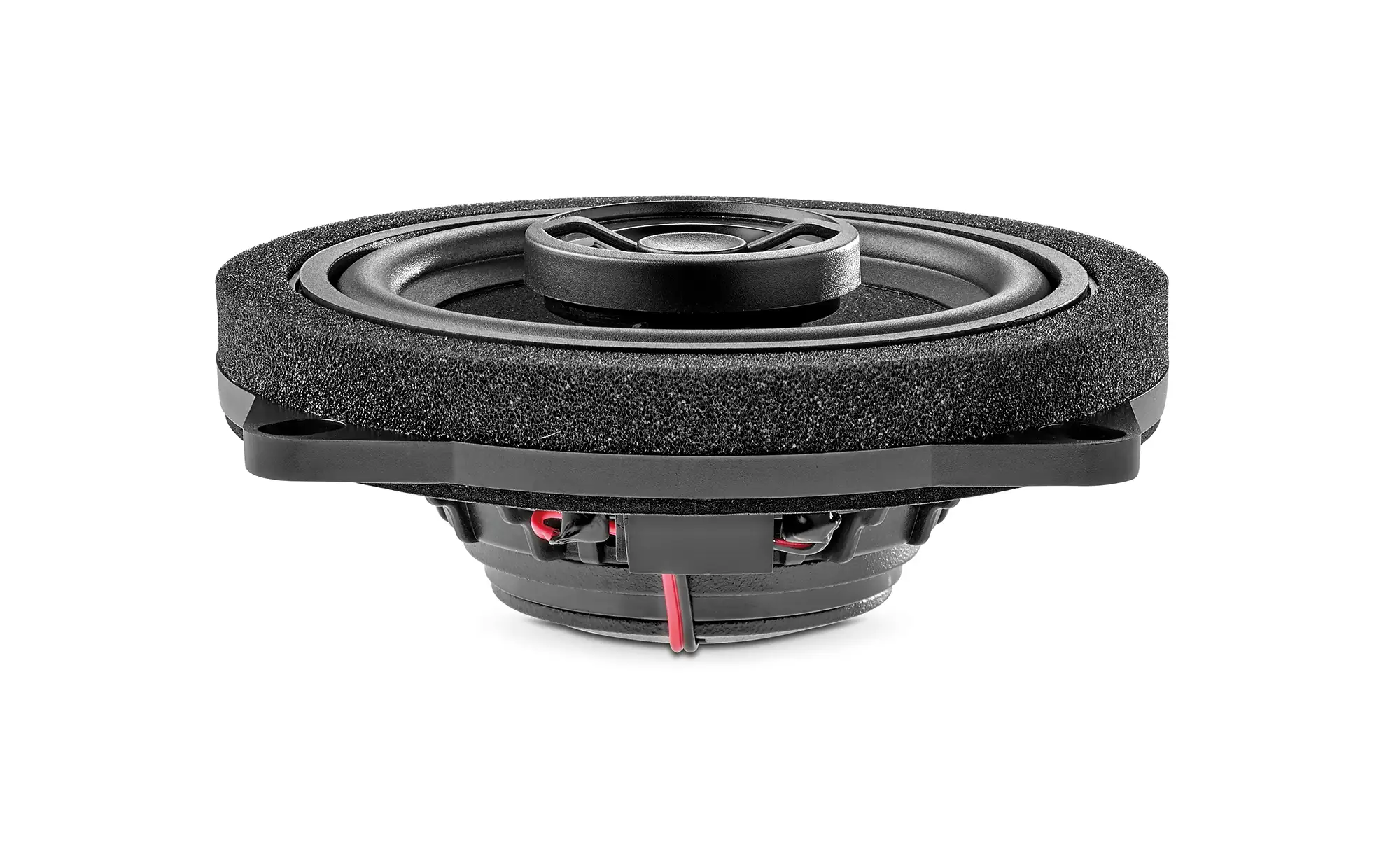

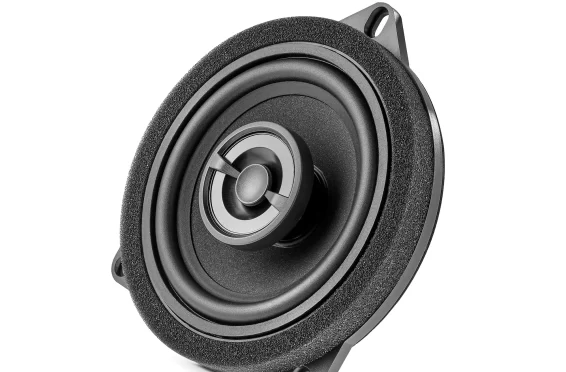

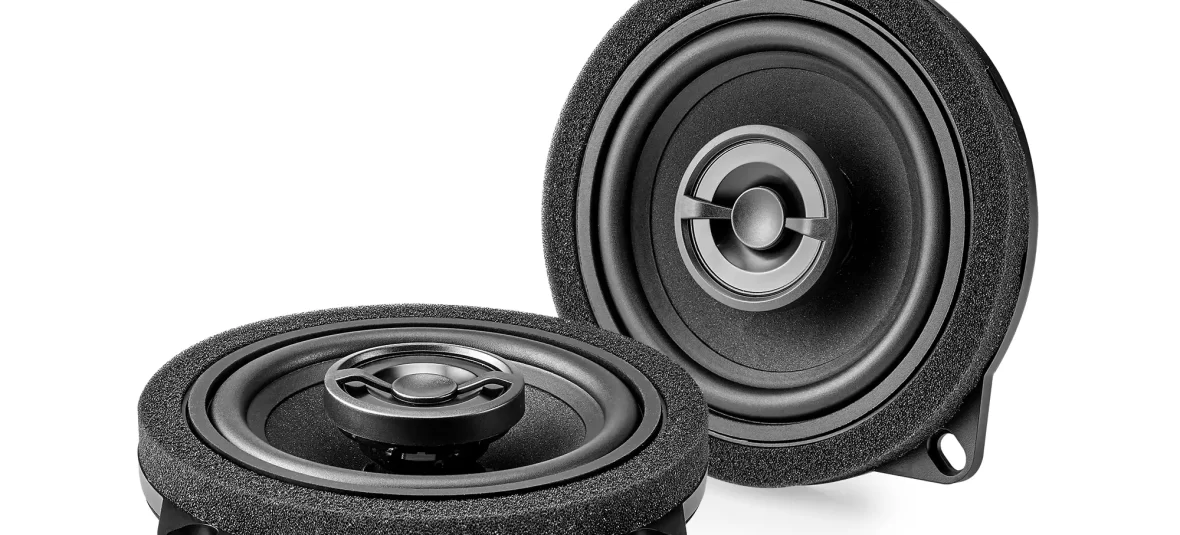

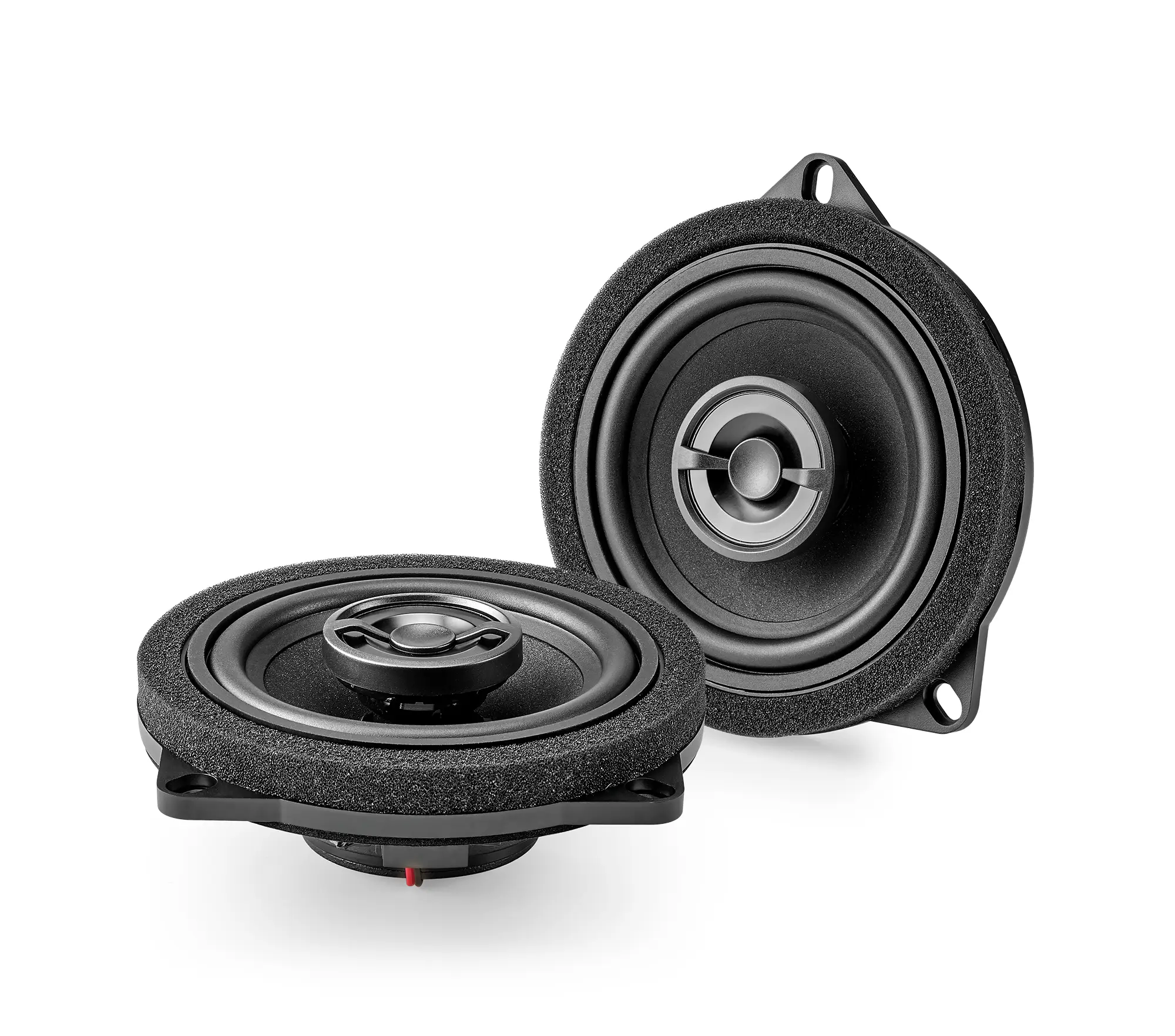

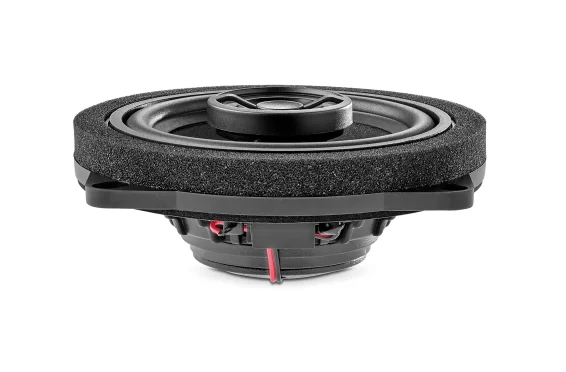

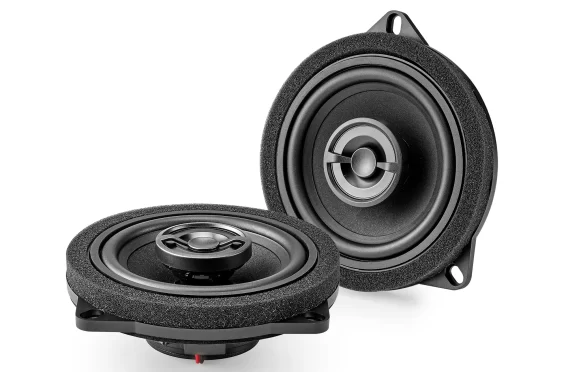

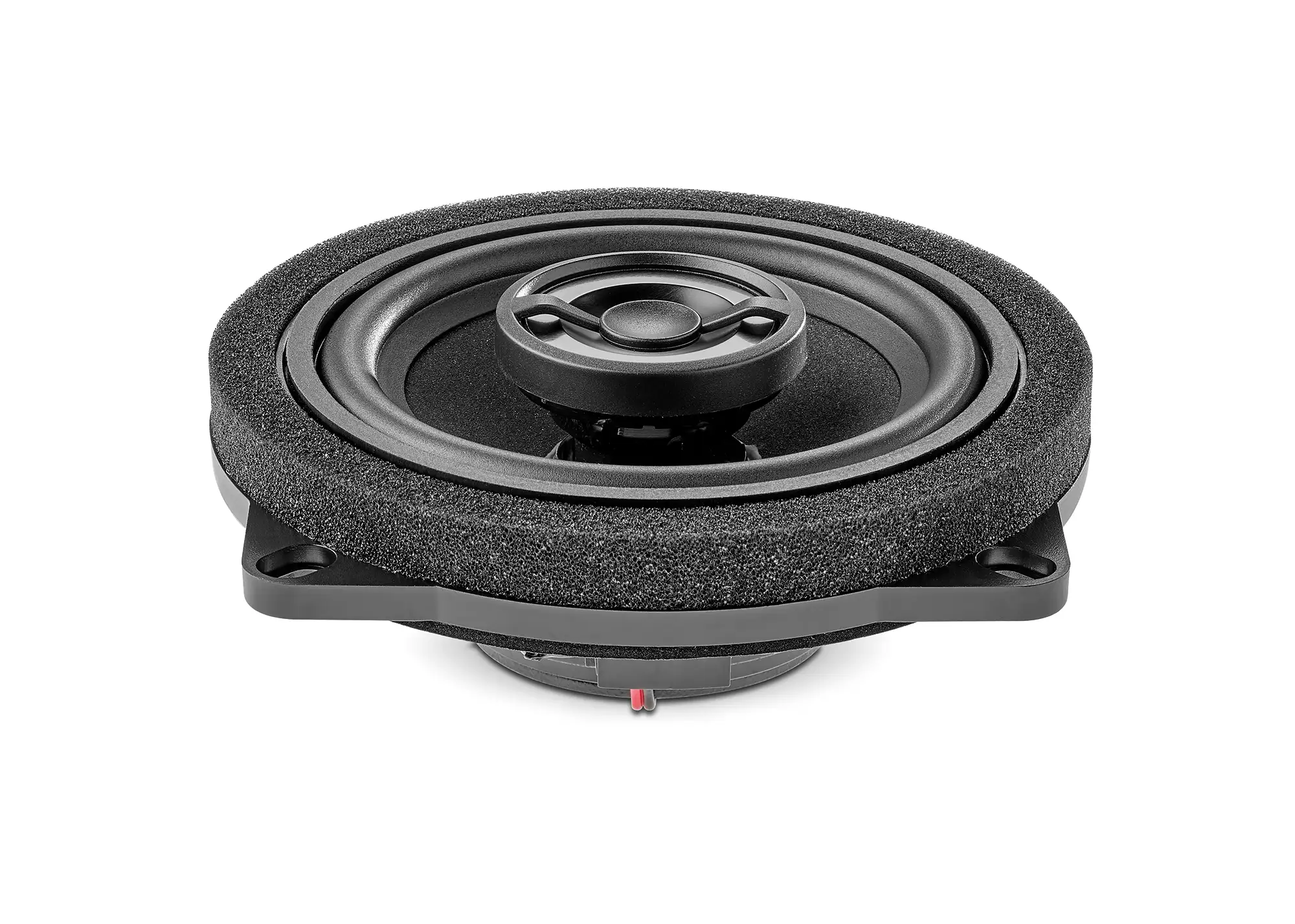

2-way coaxial kit
The IC BMW 100 v2 has been designed to elevate the audio experience in the latest generation BMW vehicles including the 3 Series, 4 Series, and i4. With its seamless integration and advanced Focal technologies, this Plug & Play solution delivers precise sound reproduction, ensuring an unparalleled in-car audio experience. For a fully customised installation, consider complementing it with the ICC centre channel and BMW subwoofers.
Key Points
- Depth : 51 mm / 2 in
- Cut-Out diameter : 119.2 mm / 4.7 in
- Depth behind surface (Mounting depth) : 26 mm / 1 in
Specifications
- Product type : 2-way coaxial kit
- Membrane : Polyglass
- Coil diameter : 1″
- Tweeter : Inverted Dome Tweeter in Aluminum/Magnesium
- Filter : Integrated
- Frequency response (+/- 3dB) : 80Hz – 23kHz
- Maximum power : 80 W
- Motor : Neodymium
- Nominal Impedance : 4 Ω
- Nominal power : 40 W RMS
- Sensitivity : 92.5 dB
- Surround material : Butyl
