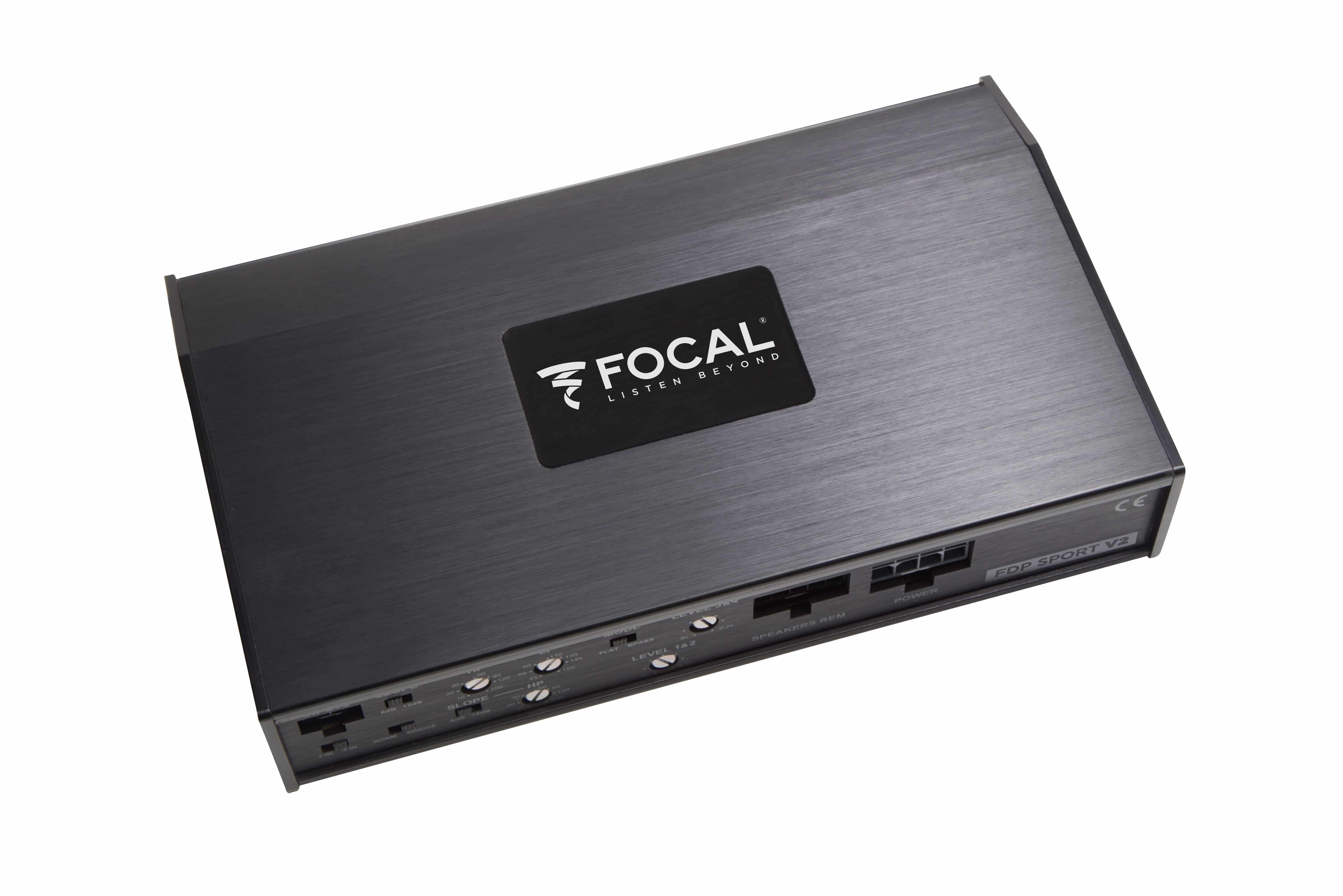

FDP Sport V2
Details:
- Price (MSRP):
- 1250.00
- Product Line:
- Amplifiers, FDP Amplifiers, Performance
- Download:
- Specsheet (PDF)
Motorcycle & All-Terrain 4-Channel Amplifier
High Quality Full Range Class D amplifier using discrete components
View/Download
Advantages:
- Very small size for power output
- Can be used in 2, 3, or 4 channel modes
- Conformally coated circuit board for added water resistance
- Easily accessible settings
- Flexible crossovers for every amp configuration
- Can be mounted above Harley Davidson radio
Included Accessories:
- Harley Molex input harness
- Harley Molex output harness
- OFC power and ground cable, will reach the battery.
- Adjustable mounting feet for 2 different mounting options.
- Regular 4 channel RCA input harness
Specifications:
| Power into 4 Ohms | 4x150w RMS @ 1% THD |
|---|---|
| Power into 2Ohms | 4x200w RMS @ 1% THD |
| Bridged mode into 4 Ohms | 2x400w RMS @ 1% THD |
| Frequency response | 10Hz–30kHz +0, -1dB |
| Signal/noise ratio | 95dB (A) |
| Adjustable gain | 300mV to 16V |
| Dimensions(HxLxD): | 1-5/8 x 8-1/4 x 5 in (41 x 208 x 127mm) |
| Protections | Short-circuit, thermal overload, polarity reversal, DC |
