Ultima

Details:

Product Line:
Archive, Archived Utopia Be
Download:
 Infosheet (PDF)
Download:
 Specsheet (PDF)

Experience the Ultimate Spirit of Sound



Full Active 2-Way Component Kit

ultimaorcasiteUltima is a active audio kit designed and developed from the best of Focal technologies, from the most prestigious hi-fi speakers. New acoustics reference, true hi-fi system, Ultima is composed of a real mid-bass developed from the Grande Utopia EM midrange associated with its pure Beryllium tweeter with IAL2 technology and two 8″ subwoofers designed for the high end professional monitoring system SM9.

Ultima goes beyond the reasonable bounds and offers unparalleled purity and acoustic efficiency to the most demanding music and car lovers!

Advantages
  • Active system
  • Speaker developed from the best Focal loudspeakers (Grande Utopia EM & SM9)
  • Very good tonal balance and natural reproduction even of the “extreme” frequencies (treble and low bass frequencies)
  • Natural frequencies connection between tweeter & woofer
  • Powerful subwoofer with high SPL (low load volume in ported enclosure)
  • The best of the technology for a very high-end hi-fi sound
  • Ultima kit is delivered in a Black Satin wood case including authenticity certificate, service manual, Focal tool CD for settings.
Composition of the Kit
  • 2 x Tweeters, 2 x Woofers, 2 x Subwoofers
Accessories
  • Woofer aluminum ring
  • Fixing screw kit (woofer, subwoofer, tweeter)
  • Grilles for tweeter
  • Authenticity certificate
  • Focal tool CD
View/Download



Specifications:

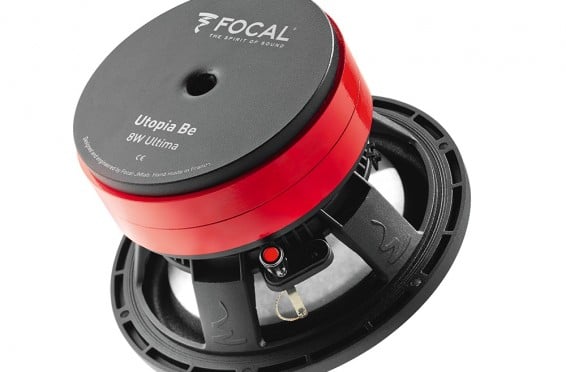

Subwoofer 8″ (200mm)
Voice coil diameter1-15/16″ (50mm)
Voice coil height1-1/8″ (28mm)
Nominal Power300W RMS
Maximum Power600W
Sensitivity (2.83V/1m)90.2dB
Woofer 6-1/2″ (165mm)
Voice coil diameter1-9/16″ (40mm)
Voice coil height0-2/3″ (17mm)
Nominal Power120W RMS
Maximum Power240W
Sensitivity (2.83V/1m)90.5dB
Tweeter 2-15/16″ (75mm)
Voice coil diameter0-13/16″ (20mm)
Voice coil height0-1/16″ (1.4mm)
Nominal Power50W RMS (with filtering)
Maximum Power200W (with filtering)
Sensitivity (2.83V/1m)93dB
