FSP-8
Details:
- Price (MSRP):
- 1,630.00
- Product Line:
- DSP, Performance
- Download:
- Infosheet (PDF)
- Download:
- Specsheet (PDF)
The First Focal DSP
8 Channel Digital Signal Processor
FSP-8 is the ultimate digital tool to optimize and shape the audio signal… High-resolution sound quality, compatible inputs/outputs, a user interface designed for and by acoustic experts, FSP-8 is the ultimate tool for the most demanding installations.
How could we create the best product on the market for connecting your head unit to your amplifier system? How could we make it possible for you to shape and fine-tune the audio spectrum to create your very own musical experience?
Even if most vehicles today are equipped with a standard audio system, the most demanding sound enthusiasts want unique, high-quality audio for their car.
They want to build their system, step by step and have full control over each element of the audio story. The DSP (Digital Signal Processor) is an essential tool in achieving this.
Key Points
- Compatible with all head units
- High-resolution digital input (24 bits/192kHz)
- Unique and intuitive user interface Focal DSP Manager
- Remote control included

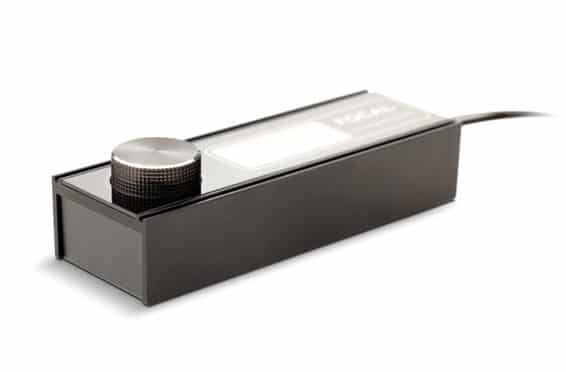

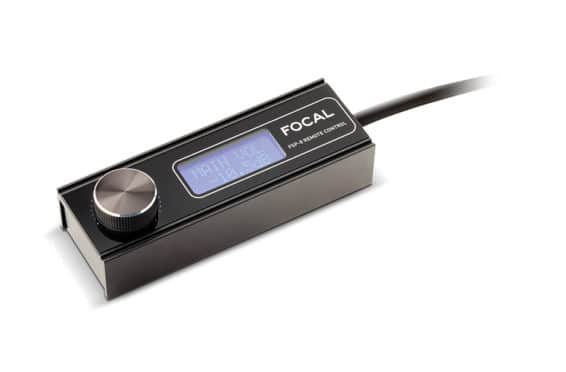

FSP-8 Remote Control (INCLUDED)
- This LCD remote control improves user experience with DSP FSP-8.
- The intuitive control allows you to easily adjust the main settings, and more importantly, to recall up to four saved presets.
- This remote control will be essential to drive the Digital Signal Processor…
Specifications
| INPUTS | |
|---|---|
| Low-level input sensitivity (Analog and Aux) | 1.2V – 4.9V |
| High-level input sensitivity (Analog and Aux) | 4.8V – 20.6V |
| Digital input formats supported (optical) | up to 24 bits/192kHz |
| OUTPUTS | |
| Number of channels | 8 |
| Max. output (with 10kΩ) level | 3.4V |
| Frequency response (digital crossover off/-3dB) | 5Hz – 21kHz |
| Signal/noise ratio | -90dBa (analogue input) -99dBa (optical) |
| Harmonic distortion – 10kΩ – @1kHz (with 22kHz low-pass filter) | 0.02% |
| Crosstalk – 4Ω – @1kHz Gain adjustment range | -78dB |
| Equaliser | 64dB |
| Adjustable high-pass crossover | 10 bands, each fully customisable for each channel |
| Adjustable high-pass crossover | 16Hz – 20kHz |
| Adjustable bandpass crossover | 16Hz – 20kHz |
| Latency adjustment range | 16Hz – 20kHz 0-22ms per channel |
| Latency adjustment steps | 0.1ms |
| Phase inverter | ✓ |
| GENERAL | |
| Easy Configuration | ✓ |
| Dynamic help | ✓ |
| Power consumption on standby (product on, no signal, 14.4 Vin) | 0.7a (0.73 a with remote) |
| Power consumption OFF (14.4 Vin, remote OFF) | < 50μa |
| Remote control | Included (in US Market only) |
| Protection | Polarity inverter |
| Weight | 3lbs (1.35kg) |
| Dimensions : (LxWxH) | (1.35kg) 89/16″x57/16″x17/8″ (21.8cmx13.8cmx4.8cm) |
