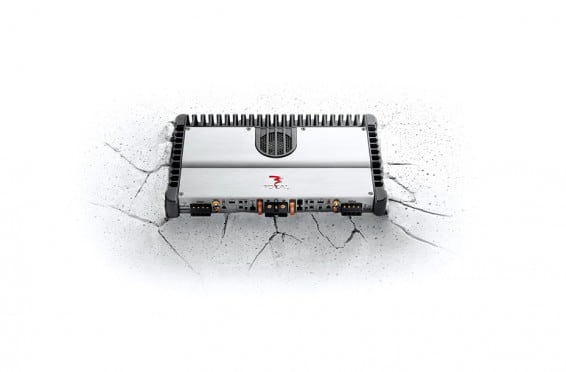

FPS 4160


Price (MSRP):
Product Line:
Archive, Archived Amplifiers
 Infosheet (PDF)
 Specsheet (PDF)
High-end Class AB amplifier.

Direct mode available for quality active amplification. Thermo-controlled ventilation. Compatible with High-Cap.

  • Symmetrical design: Audiophile Quality
  • Progressive controlled cooling system: Regulates the amplifier temperature
  • Insulated Gate Bipolar Transistor (IGBT): Audiophile and powerful
  • Direct mode: The audio signal is directly amplified
  • High-pass, low-pass and band-pass crossovers: Adjustable from 50Hz to 5kHz
  • Pseudo-balanced input: No parasite
  • Controlled cooling system: Air flow control
  • Safety terminal: Cable and sheath complete integration

CEA 2006 (4 Ohms, ≤1% THD+N, 14.4 Volts) 4x120W
Nominal Power 4x160W into2 Ohms with 0.07% THD
Nominal Power (bridged mode) 2x360W into 4 Ohms with 0.08% THD
Adjustable high-pass crossover from 50Hz to 5kHz
Adjustable low-pass crossover from 50Hz to 5kHz
Adjustable band-pass crossover from 50Hz to 5kHz
Direct Mode: Protections short-circuit, direct current, thermal overload,
polarity reversal
