FDS 2.350

Details:

Product Line:
Archive, Archived Amplifiers
Download:
 Infosheet (PDF)
Download:
 Specsheet (PDF)
Ultra Compact 2-Channel Amplifier

The FDS 2.350 is a 2-channel model delivering a power of 2 x 105 Watts RMS under 4 Ohms. For a perfect matching, it’s featuring an active high-pass and lowpass crossover. The FDS 2.350 can consequently drive a pair of speaker drivers or a subwoofer.

  • Stereo D Class bridgeable amplifier
  • High-level inputs with auto-detect / RCA low-level inputs
  • Compact
Advantages
  • D Class – Direct Fet ® Technology – Efficient heat dissipation and precision
  • Stable under 2 Ohms
  • Stackable aluminium chassis with high heat dissipation
  • Low noise operational amplifiers New Japan Radio® NJM4580
  • Low ESR capacitors – 105°C (220°F)
  • Pseudo-balanced inputs
Specifications:
Stereo Class D bridgeable amplifierHigh-level inputs with auto-detection / RCA low-level inputs
CEA power (4 Ohms)2 x 105 Watts RMS
Power max (2 Ohms)2 x 170 Watts RMS
Power max (4 Ohms bridged)1 x 360 W RMS
Configurable high-pass/low-pass crossover40Hz – 400Hz
Full Range Mode
Bass boost(0-12dB)
ProtectionsShort circuit / low impedance / reversal of polarity / DC / power drop / heat protection
Dimensions (L X H X W)7-13/16 x 4-1/4 x 1-11/16 in (199 x 108 x 43mm)
Weight1.9lbs

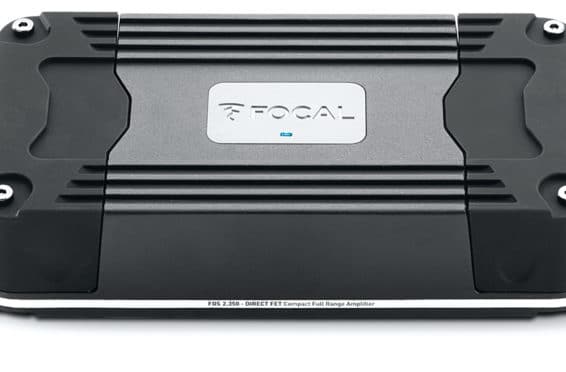

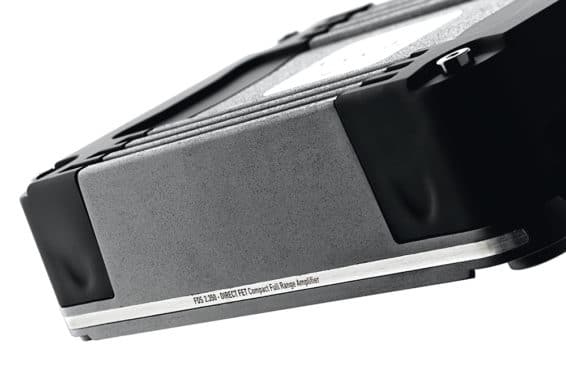

Photo Gallery:
