FPX 5.1200

Details:

Price (MSRP):
 960.00
Product Line:
Amplifiers, FPX Amplifiers, Performance
Download:
 Infosheet (PDF)
Download:
 Specsheet (PDF)
5/4/3-Channel Amplifier

D Class Premium Amplifier

Advantages:
  • D Class amplifier: 5 output channels
  • Stable under 2 Ohms
  • High power and dynamic reserve (1 200W max)
  • Audio Mos-Fets – Optimized efficiency
  • Subwoofer remote control supplied
Specifications:
CEA Power (4 Ohms) 4×75 Wrms + 1×420 Wrms
Maximum Power (2 Ohms) 4x120Wrms + 1×720 Wrms
Maximum Power (Ch 1-4 bridged at 4 Ohms + Ch 5 at 2 Ohms) 2x240Wrms + 720 Wrms
Bandwidth 10Hz–20kHz
Total Harmonic Distortion 0.03%
SNR (1W/A) 75 dBA
Low-Pass Filter Ch 1-4 50Hz-500Hz
Ch 5 (Subwoofer): Subsonic Filter (High-pass) 10Hz-50Hz+
Ch 5 (Subwoofer): Low-pass filter 50Hz-250Hz
Ch 5 Bass Boost 45Hz / 0 to 12dB
Phase adjustable from 0 to 180° For channel 5
Copy Mode: (6 CH / 4 CH / 2 CH)
Full Range Mode:
Protections Short Circuit, low impedance, reversal of polarity, DC, power drop, heat protection
Weight 9lbs (4.1kg)
Dimensions(HxLxD)
13-17/64″ x 2-1/4″ x 6-57/64″ (337 x 175 x 57mm)

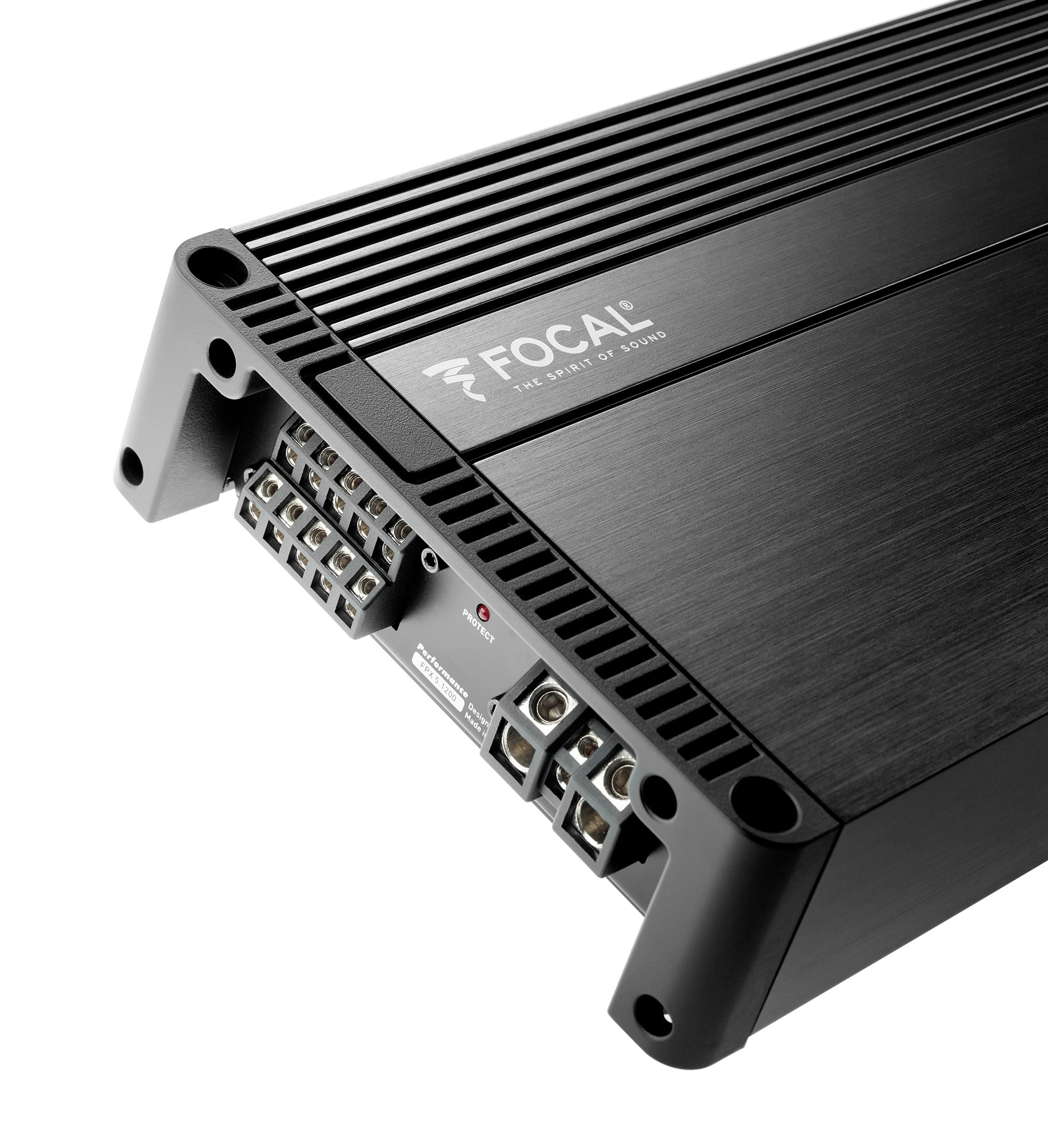

Photo Gallery:
