ES 165 KX3


Price (MSRP):
Product Line:
Component, Elite, K2 Power
 Infosheet (PDF)
 Specsheet (PDF)

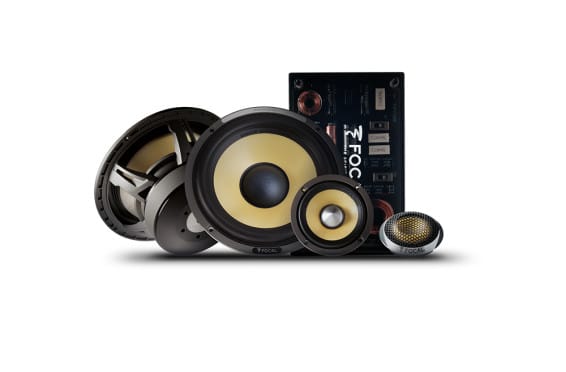

3-Way Component Kit

⋅  Inverted dome “M”-shaped tweeter

⋅  Bi-Amp crossover

⋅  High power handling

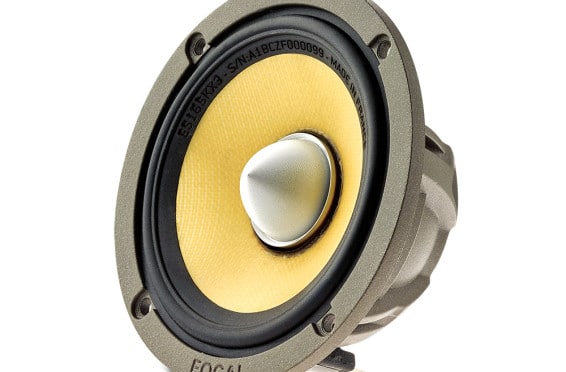

⋅  3″ compact medium size

⋅  Aluminum and mesh grille

⋅  Safe impedance

diameter 6-1/2″ (165mm)
voice coil diameter 1-9/16″ (40mm)
voice coil height 0-2/3(16.5mm)
motor Magnet
tweeter TKMX (“M” profile aramid fiber inverted dome)
cone Composite K2 Power “W” sandwich cone
surround Tuned Mass Damper (TMD)
separated crossover 6-12/12/12dB (3/4/500Hz/3.5kHz)
tweeter adjustable level +3; 0; -3dB/oct
max power 240W
nominal power 120W RMS
sensitivity (2.83V/1m) 93dB
frequency response 45Hz-22kHz
impedance 4 Ω
impedance Supplied grilles and midbox
